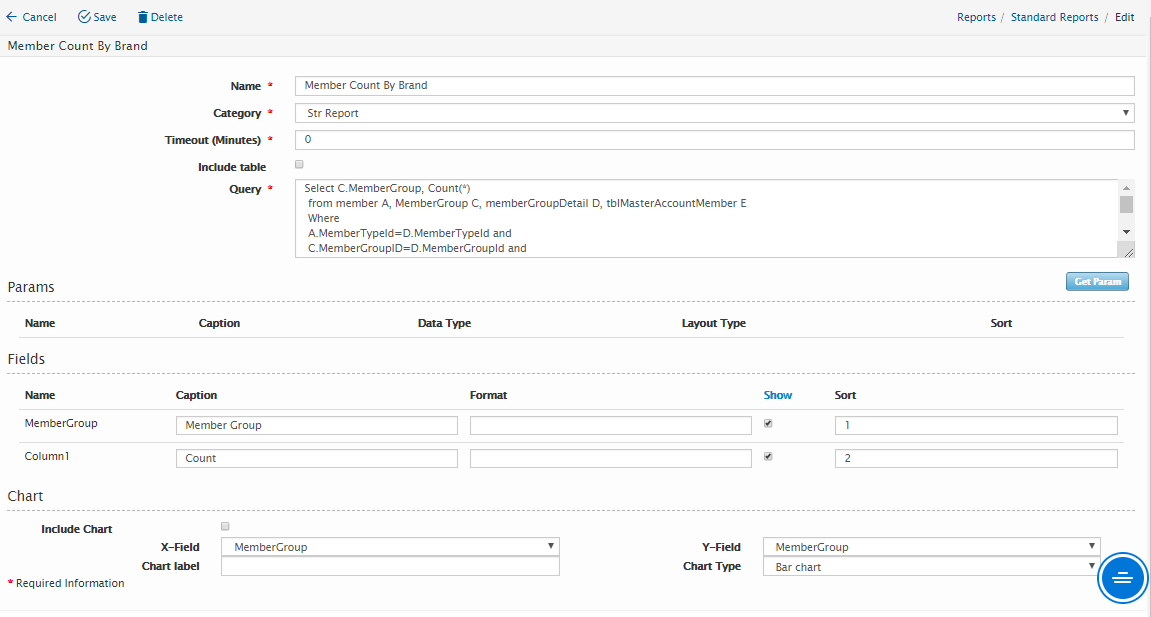

The Edit Report screen is similar to the Add Report page. Users can modify the following details:

Field Name

Mandatory

Length

Remarks

Report Name

Yes


Enter the Report Name

Category

Yes

N/A

Select Report Category from the list

Timeout(minutes)

Yes


To set timeout in minutes. It is to define in xx minutes if report not generated then kill the process to avoid any high load to server causing system slowness (recommended value to be set is up to 10 minutes )

Include Table

No



Query

Yes


Select statement of report query

Params

Auto


The section to show and modify the declared variables is in used on the query ( which will define the search filter on the report)

Layout of params:

1)Texbox

Datatypes: Text, integer, Decimal, Date

2) Dropdown List

Fixed, Dynamic( Query to generate dropdownlist)

Field

Auto


To show all Selected columns/fields from query


Caption: Field to set Column name appear in final report generate



Chart

No


To set if chart need to be added to the into the report

Available Chart type : Bar chart, Pie Chart, Line Chart

X-field : To choose between available fields


Y- Field : To Choose between available fields


Click on “Save” button to save the details or click on “Cancel” button to cancel the action and return to Report page.
