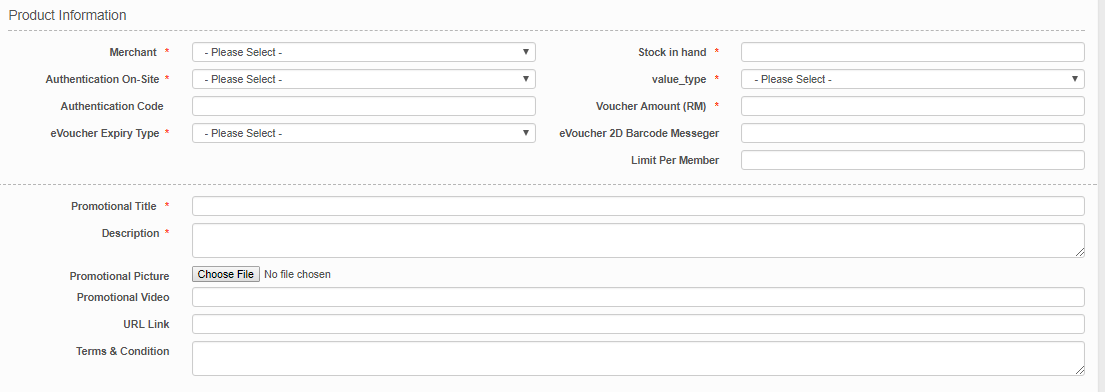

If user selected E-Voucher Product Type, the following Product Information page will appear:

Field Name

Mandatory

Length

Remarks

Merchant

Yes

N/A

Select the Merchant of the Product Catalogue

Authentication On-site

Yes

N/A

Select the Authentication On-site (Password, 2d Barcode or None)

Authentication Code

No

N/A

Enter the Authentication Code

eVoucher Expiry Type

Yes

N/A

Enter the Expiry date

Stock in Hand

Yes

N/A

Key in the stock in hand. User can only enter a number. Stock in hand field will be deducted when redemption has taken place.

Value Type

Yes

N/A


Voucher Amount (RM)

Yes

N/A


eVoucher 2D Barcode Messenger

No

N/A


Limit Per Member

No

N/A


Promotional Title

Yes

N/A


Description

Yes

N/A


Promotional Picture

No

N/A


Promotional Video

No

N/A


URL Link

No

N/A


Terms and Condition

No

N/A

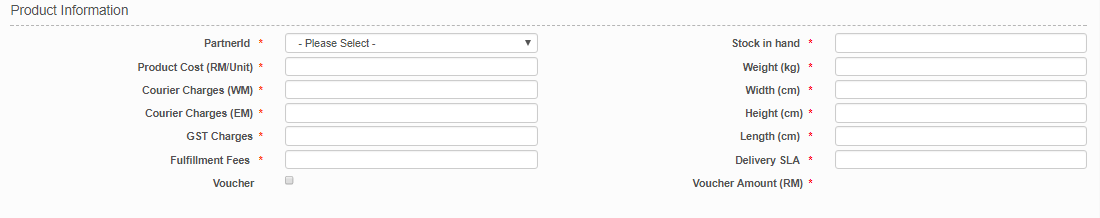

If user selected Physical Item Product Type, the following Product Information page will appear:


Field Name

Mandatory

Length

Remarks

Partner Id

Yes

N/A

Select the redemption partner who will be doing the fulfilment / delivery of this product

Product Cost

Yes

N/A

Key in the per unit product cost (RM/Unit). Can only enter numeric

Courier Charges (WM)

Yes

N/A

Key in the courier charges. Can only enter numeric

Courier Charges (EM)

Yes

N/A

Key in the courier charges. Can only enter numeric

GST Charges

Yes

N/A

Key in the GST Charges. Can only enter numeric

Fulfilment Fees

Yes

N/A

Key in the Fulfilment Fees. Can only enter numeric

Voucher

Yes

N/A


Stock in Hand

Yes

N/A

Key in the stock in hand. User can only enter a number. Stock in hand field will be deducted when redemption has taken place.

Weight

Yes

N/A

Weight of product. This field is only for internal reference purpose.

Width

Yes

N/A

Weight of product. This field is only for internal reference purpose.

Height

Yes

N/A

Height of product. This field is only for internal reference purpose.

Length

Yes

N/A

Length of product. This field is only for internal reference purpose.

Delivery SLA

Yes

N/A

Enter the number of days SLA (e.g. 5 days).


 System will send notification to fulfilment party when complete fulfilment of a product exceeds Delivery SLA.

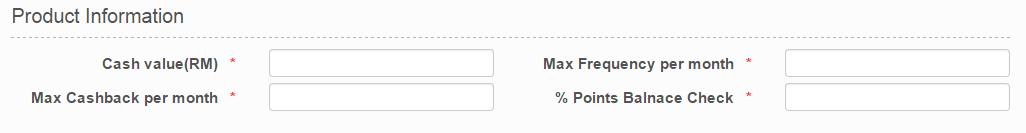

If user selected Cash Reward Product Type, the following Product Information page will appear:

Field Name

Mandatory

Length

Remarks

Cash Value

Yes

N/A

Cash value to be debited back to member’s card account.

Max Frequency per month

Yes

N/A

Maximum number of times this product can be redeemed in a month.

Max Cash back per month

Yes

N/A

Maximum amount of this product that can be redeemed in a month.

% Point Balance Check

Yes

N/A

Minimum point balance that must be maintained in member’s account after the redemption of this product.


If user selected Fee Knock-Off Product Type, the following Product Information page will appear:


Field Name

Mandatory

Length

Remarks

Fee Value

Yes

N/A

The Fee value already charged to member’s card that will be knocked-off with the redemption of this product.

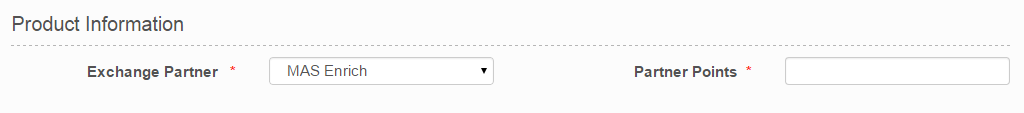

If user selected Partner Point Exchange Product Type, the following Product Information page will appear:


Field Name

Mandatory

Length

Remarks

Exchange Partner

Yes

N/A

Select the point exchange partner from drop down list. Point Exchange Partner is configured in 4.7 Partner Point Exchange

Partner Points

Yes


Number of Partner Points to Exchange to.

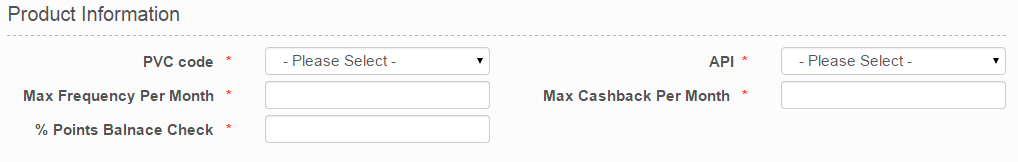

If user selected Instant Redemption Product Type, the following Product Information page will appear:


Field Name

Mandatory

Length

Remarks

PVC Code

Yes

N/A

Point Currency Code to use for conversion of points to Actual Current (RM)

API

Yes

N/A

API Id that will have access to this Redemption product. Only devices/terminals with the correct API Id will be able to redeem this Instant Redemption product.

Max Frequency per month

Yes

N/A

Maximum number of times this product can be redeemed in a month.

Max Cash back per month

Yes

N/A

Maximum amount (RM) of this product that can be redeemed in a month.

% Point Balance Check

Yes

N/A

Minimum point balance that must be maintained in member’s account after the redemption of this product.
